Transponders

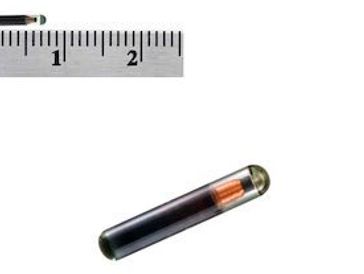

ID-100C - Standard
ID-100C - Standard
ID-100C - Standard
- Implantable Transponder w/ 32mm canula - boxed in 50s (carton size 1,200 units)
- 11.5 x 2.12mm and suitable for use in most animal species
- Bio-compatible glass encapsulation
- Pre-sterilised and individually packaged in a disposable needle with 6 barcode stickers
- Can be used with the IM-300C Pistol Grip Implanter (see accessories below)
ID-100B/1.4 - Mini
ID-100C - Standard
ID-100C - Standard
- Implantable Mini Transponder w/ canula - boxed in 50s (carton size 1,200 units)
- 8 x 1.4mm so very suited to smaller species
- Bio-compatible glass encapsulation
- Pre-sterilised and individually packaged in a disposable needle with 6 barcode stickers
- Needle Dimension: Length: 32mm (1.26 in.) / Outside Diameter: 2 mm (0.08 in.) / Thin Walled
- Can b
- Implantable Mini Transponder w/ canula - boxed in 50s (carton size 1,200 units)
- 8 x 1.4mm so very suited to smaller species
- Bio-compatible glass encapsulation
- Pre-sterilised and individually packaged in a disposable needle with 6 barcode stickers
- Needle Dimension: Length: 32mm (1.26 in.) / Outside Diameter: 2 mm (0.08 in.) / Thin Walled
- Can be used with the IM-300C Pistol Grip Implanter (see accessories below)
ID-100B/125 - Nano
ID-100C - Standard
ID-100B/125 - Nano
- Implantable Mini Transponder w/ canula - boxed in 50s (carton size 1,200 units)
- 8 x 1.25mm so very suited to smaller species
- Bio-compatible glass encapsulation
- Pre-sterilised and individually packaged in a disposable needle with 6 barcode stickers
- 16.5 Gauge Needle, (1.61mm Diameter, 0.15mm Wall thickness, 20mm Length))
- Can be used with the IM-300C Pistol Grip Implanter (see accessories below)
SPECIALITY Transponders
ID-1000 Disk Transponder
- Slim disk form factor.
- Factory pre-programmed.
- Available in four sizes: 12, 20, 30, and 50 mm dia.
- ID-1000/12 Dimensions: Dia. 12.4 mm (0.49 in.); Thickness 2 mm (0.078 in.)
- ID-1000/20 Dimensions: Dia. 20 mm (0.8 in.); Thickness 2 mm (0.078 in.); Dia. inner opening 3.2 mm (0.13 in.)
- ID-1000/30 Dimensions: Dia. 30 mm (1.2 in.); Thickness 2 mm
- Slim disk form factor.
- Factory pre-programmed.
- Available in four sizes: 12, 20, 30, and 50 mm dia.
- ID-1000/12 Dimensions: Dia. 12.4 mm (0.49 in.); Thickness 2 mm (0.078 in.)
- ID-1000/20 Dimensions: Dia. 20 mm (0.8 in.); Thickness 2 mm (0.078 in.); Dia. inner opening 3.2 mm (0.13 in.)
- ID-1000/30 Dimensions: Dia. 30 mm (1.2 in.); Thickness 2 mm (0.078 in.); Dia. inner opening 5 mm (0.2 in.)
- ID-1000/50 Dimensions: Dia. 50 mm (2 in.); Thickness 2 mm (0.078 in.); Dia. inner opening 5 mm (0.2 in.)
- Optional extra: can come in individual bags with barcode sticker.
ID-100(3) Ruggedized Microtransponder
- Designed for use in textile industry, industrial applications.
- Glass encapsulation is twice as thick as the standard ID-100 glass encapsulation, allowing transponder to survive rollers, garment presses, etc.
- Survives temperatures up to 180˚C.
- Suitable for insertion into pre-drilled holes, or for molding into plastic items.
- Typical read range
- Designed for use in textile industry, industrial applications.
- Glass encapsulation is twice as thick as the standard ID-100 glass encapsulation, allowing transponder to survive rollers, garment presses, etc.
- Survives temperatures up to 180˚C.
- Suitable for insertion into pre-drilled holes, or for molding into plastic items.
- Typical read range: 240 mm (9.45 in.) w/ GR-250 reader; 330 mm (13 in.) w/ LID-650/ANT-612 reader.
- Dimensions: Dia. 3 mm; Length 13 mm (Dia. 0.18; Length 0.51 in.)
Accessories
IM-300C Pistol Grip Implanter
- Compatible with both the ID-100C, ID-100B/1.4 and ID-100B/125 transponders.
- The transponders are inserted in a sterilized needle and canula. The canula hub has a luer lock fitting which inserts, turns and locks into the nose of the injection device, ensuring a tight fit for stable transponder implanting.
IM-200C Syringe Style Implanter
- Compatible with both the ID-100C and ID-100B/1.4 transponders.
- Syringe style, multi use.
